Gitops Commands

GitOps commands #

Pipelines-as-Code support the concept of GitOps commands a way to have the users issue a special command on a comment of a Pull Request or a Pushed Commit to control Pipelines-as-Code.

The advantage of using a Gitops command is to get a journal of all the execution of your Pipeline directly on your Pull request near your code.

GitOps commands on Pull Requests #

For example when you are on a Pull Request you may want to restart all your pipelineruns, to do so you can add a comment on your pull request starting with /retest and all PipelineRuns attached to that pull request will be restarted :

Example :

Thanks for contributing, This is a much needed bugfix, and we love it ❤️ The
failure is not with your PR but seems to be an infra issue.

/retest

If you have multiple PipelineRun and you want to target a specific PipelineRun you can use the /test and the specific PipelineRun as a comment to restart it, example:

roses are red, violets are blue. pipeline are bound to flake by design.

/test <pipelinerun-name>

GitOps commands on pushed commits #

If you want to trigger a GitOps command on a pushed commit, you can include the GitOps comments within your commit messages. These comments can be used to restart either all pipelines or specific ones. Here’s how it works:

For restarting all pipeline runs:

  1. Use /retest or /test within your commit message.

For restarting a specific pipeline run: 2. Use /retest <pipelinerun-name> or /test <pipelinerun-name> within your commit message. Replace <pipelinerun-name> with the specific name of the pipeline run you want to restart.

Note:

When executing GitOps commands on a commit that exists in multiple branches within a push request, the branch with the latest commit will be used.

This means:

  1. If a user specifies commands like /retest or /test without any argument in a comment on a branch, the test will automatically be performed on the main branch.

    Examples :

    1. /retest
    2. /test
    3. /retest <pipelinerun-name>
    4. /test <pipelinerun-name>
  2. If the user includes a branch specification such as /retest branch:test or /test branch:test, the test will be executed on the commit where the comment is located, with the context of the test branch.

    Examples :

    1. /retest branch:test
    2. /test branch:test
    3. /retest <pipelinerun-name> branch:test
    4. /test <pipelinerun-name> branch:test

To issue a GitOps comment on a pushed commit you can follow these steps:

  1. Go to your repository.
  2. Click on the Commits section.
  3. Choose one of the individual Commit.

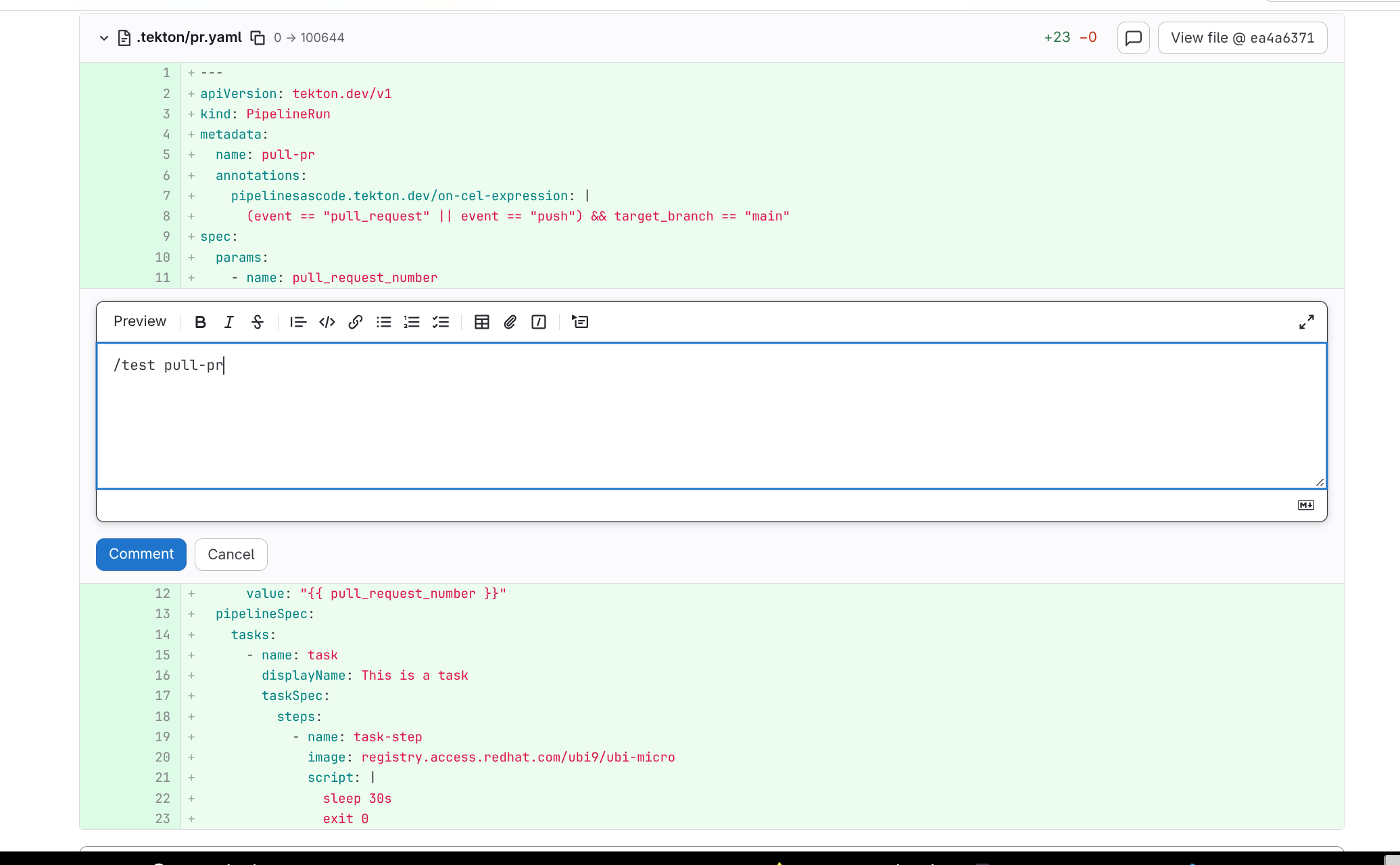

  4. Click on the line number where you want to add a GitOps comment, as shown in the image below:

GitOps Commits For Comments

Please note that this feature is supported for the GitHub provider only.

GitOps commands on non-matching PipelineRun #

The PipelineRun will be restarted regardless of the annotations if the comment /test <pipelinerun-name> or /retest <pipelinerun-name> is used . This let you have control of PipelineRuns that gets only triggered by a comment on the pull request.

Accessing the comment triggering the PipelineRun #

When you trigger a PipelineRun via a Gitops Command, the template variable {{ trigger_comment }} get set to the actual comment that triggered it.

You can then do some action based on for example the comment content with a shell script or others.

There is a restriction with the trigger_comment variable, we modify it to replace the newline with a \n since the multi-line comment can cause a issue when replaced inside the yaml.

It is up to you to replace it back with newlines, for example with shell scripts you can use echo -e to expand the newline back.

Example of a shell script:

echo -e "{{ trigger_comment }}" > /tmp/comment
grep "string" /tmp/comment

Custom GitOps commands #

Using the on-comment annotation on your PipelineRun you can define custom GitOps commands that will be triggered by the comments on the pull request.

See the on-comment guide for more detailed information.

Cancelling a PipelineRun #

You can cancel a running PipelineRun by commenting on the PullRequest.

For example if you want to cancel all your PipelinerRuns you can add a comment starting with /cancel and all PipelineRun attached to that pull request will be cancelled.

Example :

It seems the infra is down, so cancelling the pipelineruns.

/cancel

If you have multiple PipelineRun and you want to target a specific PipelineRun you can use the /cancel comment with the PipelineRun name

Example :

roses are red, violets are blue. why to run the pipeline when the infra is down.

/cancel <pipelinerun-name>

On GitHub App the status of the Pipeline will be set to cancelled.

pipelinerun canceled

Cancelling the PipelineRun on push request #

You can cancel a running PipelineRun by commenting on the commit. Here’s how you can do it.

Example :

  1. Use /cancel to cancel all PipeineRuns.
  2. Use /cancel <pipelinerun-name> to cancel a specific PipeineRun

Note:

When executing GitOps comments on a commit that exists in multiple branches within a push request, the branch with the latest commit will be used.

This means:

  1. If a user specifies commands like /cancel without any argument in a comment on a branch, it will automatically target the main branch.

    Examples :

    1. /cancel
    2. /cancel <pipelinerun-name>
  2. If the user issues a command like /cancel branch:test, it will target the commit where the comment was made but use the test branch.

    Examples :

    1. /cancel branch:test
    2. /cancel <pipelinerun-name> branch:test

In the GitHub App, the status of the Pipeline will be set to cancelled.

GitOps Commits For Comments For PipelineRun Canceled

Please note that this feature is supported for the GitHub provider only.

Passing parameters to GitOps commands as argument #

Passing parameters to GitOps commands as argument is a Technology Preview feature only. Technology Preview features are not currently supported and might not be functionally complete. We do not recommend using them in production. These features provide early access to an upcoming Pipelines-as-Code features, enabling you to test functionality and provide feedback during the development process.

When you issue a GitOps command, you can pass arguments to the command to redefine some the standard dynamic variables or the custom parameters

For example you can do:

/test pipelinerun1 key=value

and the custom parameter key if defined as custom parameter will be defined to value

If the comment does not start with a / it will not be parsed.

You can only override parameters from the standard or when set as custom parameters, you cannot pass arbitrary parameters that hasn’t been defined previously.

You can pass those key=value anywhere in your comment and it will be parsed.

There is different format that can get accepted, which let you pass values with space or newlines:

  • key=value
  • key=“a value”
  • key=“another "value" defined”
  • key=“another value with newline”

Event Type Annotation and dynamic variables #

The pipeline.tekton.dev/event-type annotation indicates the type of GitOps command that has triggered the PipelineRun.

Here are the possible event types:

  • test-all-comment : The event is a single /test that would test every matched pipelinerun.
  • test-comment : The event is a /test <PipelineRun> comment that would test a specific PipelineRun.
  • retest-all-comment : The event is a single /retest that would retest every matched pipelinerun.
  • retest-comment : The event is a /retest <PipelineRun> that would retest a specific PipelineRun.
  • on-comment: The event is coming from a custom comment that would trigger a PipelineRun.
  • cancel-all-comment : The event is a single /cancel that would cancel every matched pipelinerun.
  • cancel-comment : The event is a /cancel <PipelineRun> that would cancel a specific PipelineRun.
  • ok-to-test-comment : The event is a /ok-to-test that would allow running the CI for a unauthorized user.

When using the {{ event_type }} dynamic variable for the following event types:

  • test-all-comment
  • test-comment
  • retest-all-comment
  • retest-comment
  • cancel-all-comment
  • ok-to-test-comment

The dynamic variable will return pull_request as the event type instead of the specific categorized GitOps command type. This is to handle backward compatibility with previous release for users relying on this dynamic variable.

This currently only issue a warning in the repository matched namespace but then deprecated and changed to return the specific event type.
